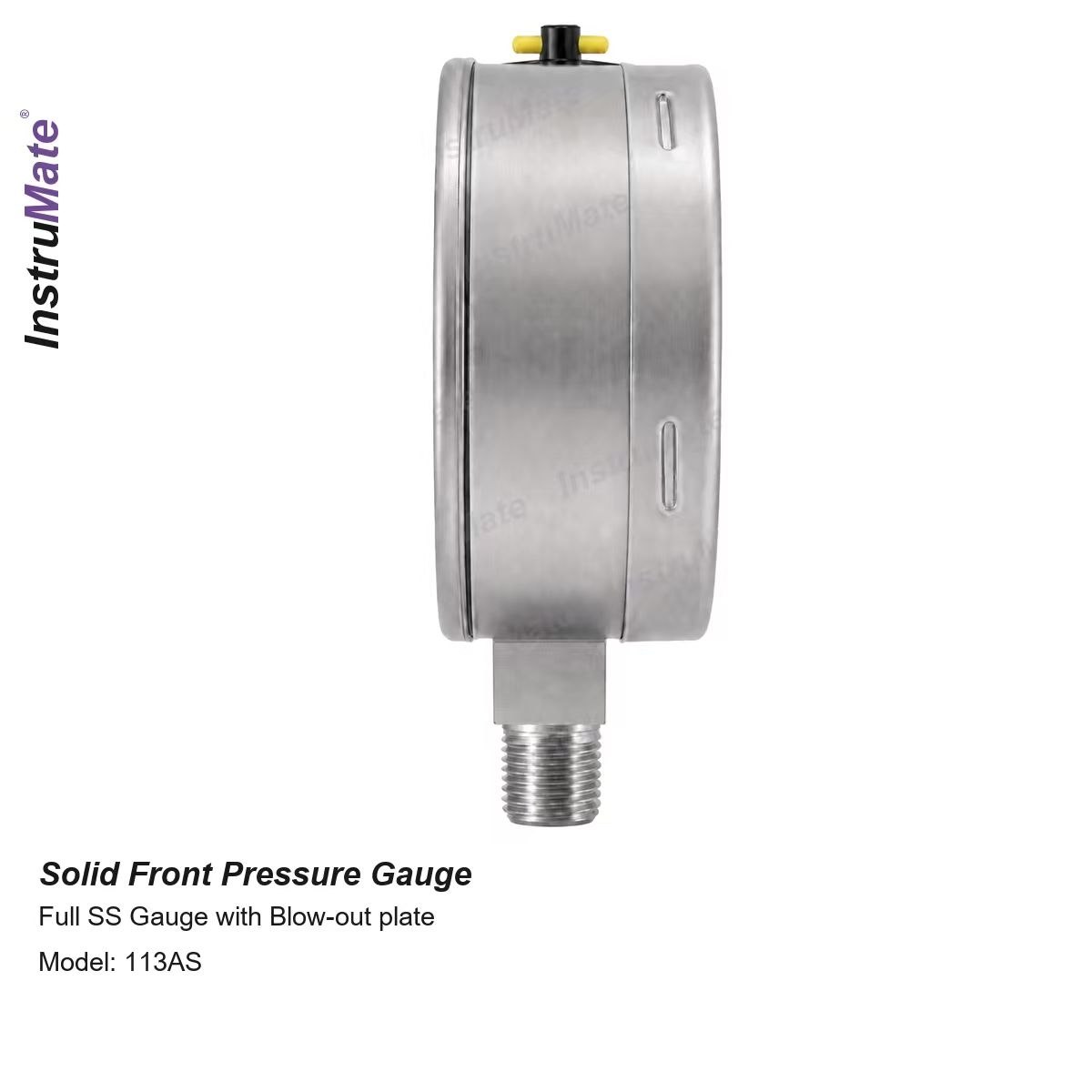

The InstruMate model 113AS is a stainless steel safety pressure gauge designed for industrial applications with increased safety
requirements. Featuring a solid baffle wall and blow-out back design, it fully complies with the operational safety requirements of EN
837-1 (S3 safety pattern).
With its all-stainless-steel construction, the 113AS is suitable for gaseous and liquid aggressive media as well as aggressive ambient
conditions. The bourdon tube measuring system ensures excellent load-cycle stability and shock resistance, making it ideal for
chemical, petro-chemical, power generation, and offshore applications.
Available in nominal sizes of 63, 100, and 160 mm, with scale ranges up to 1,600 bar. The glycerine-filled version (model 113AS-G)
provides reliable performance under high dynamic pressure loads and vibrations, extending service life of the movement.
Applications
- Increased safety requirements
- Chemical / petro-chemical industry
- Power stations, on- and offshore
- Environmental technology
- Gaseous and liquid aggressive media
- High dynamic pressure loads or vibrations
- Machine building and plant construction
- Aggressive ambient conditions
Special Features
- Safety version with solid baffle wall
- All stainless steel construction
- Compliant with EN 837-1 (S3 safety)
- Excellent load-cycle stability
- Scale ranges up to 0 … 1,600 bar

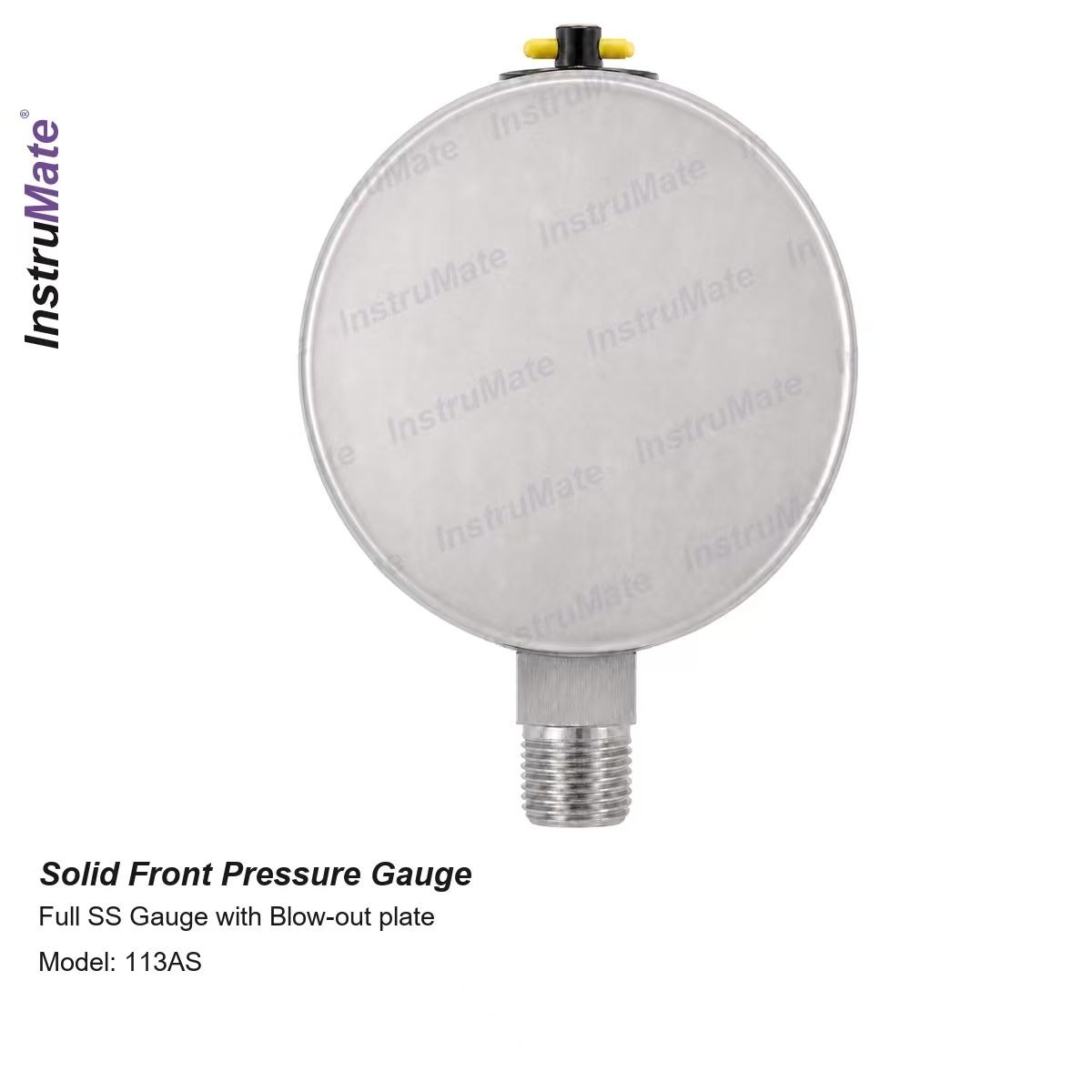

- Blow-out back safety design
